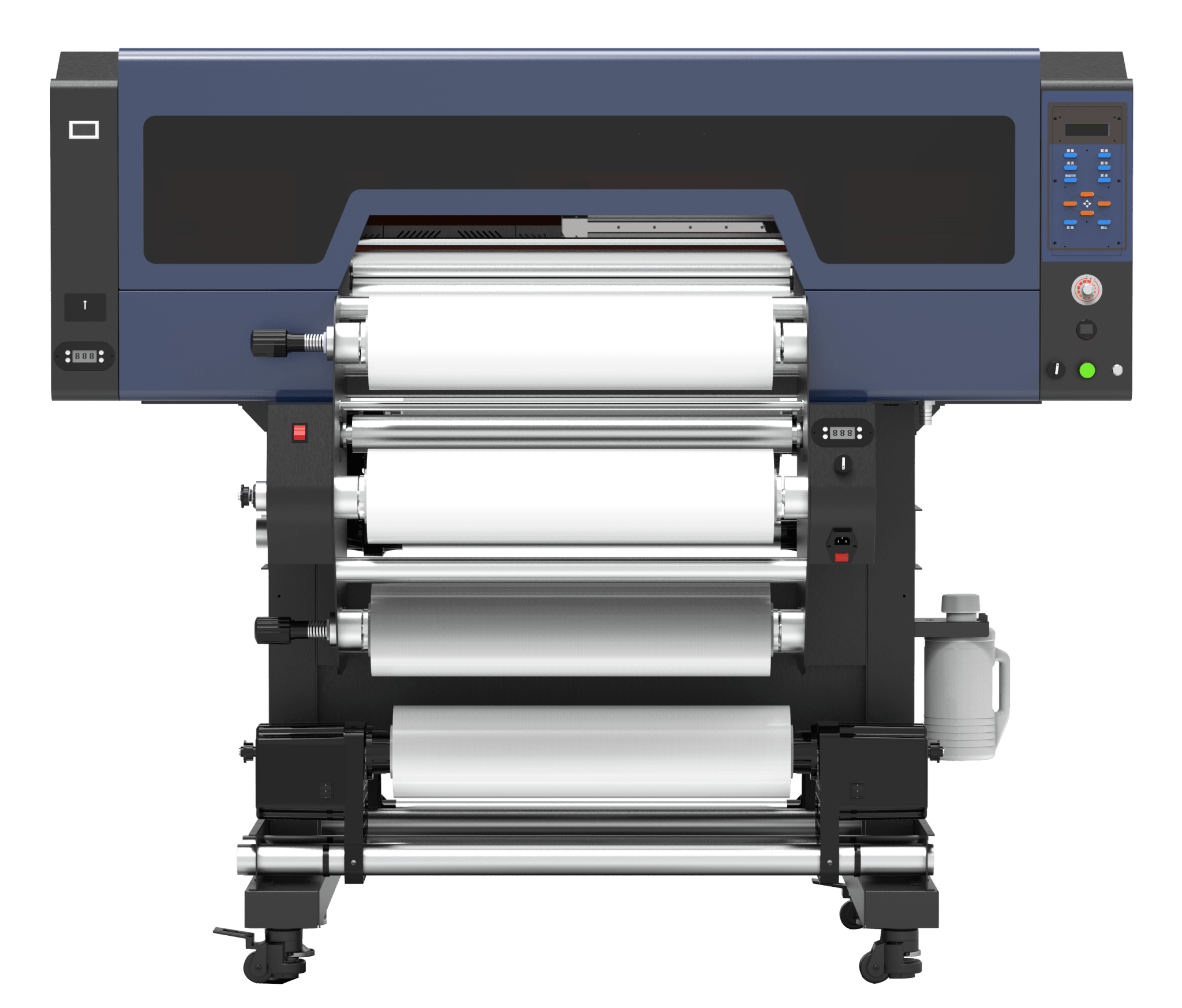

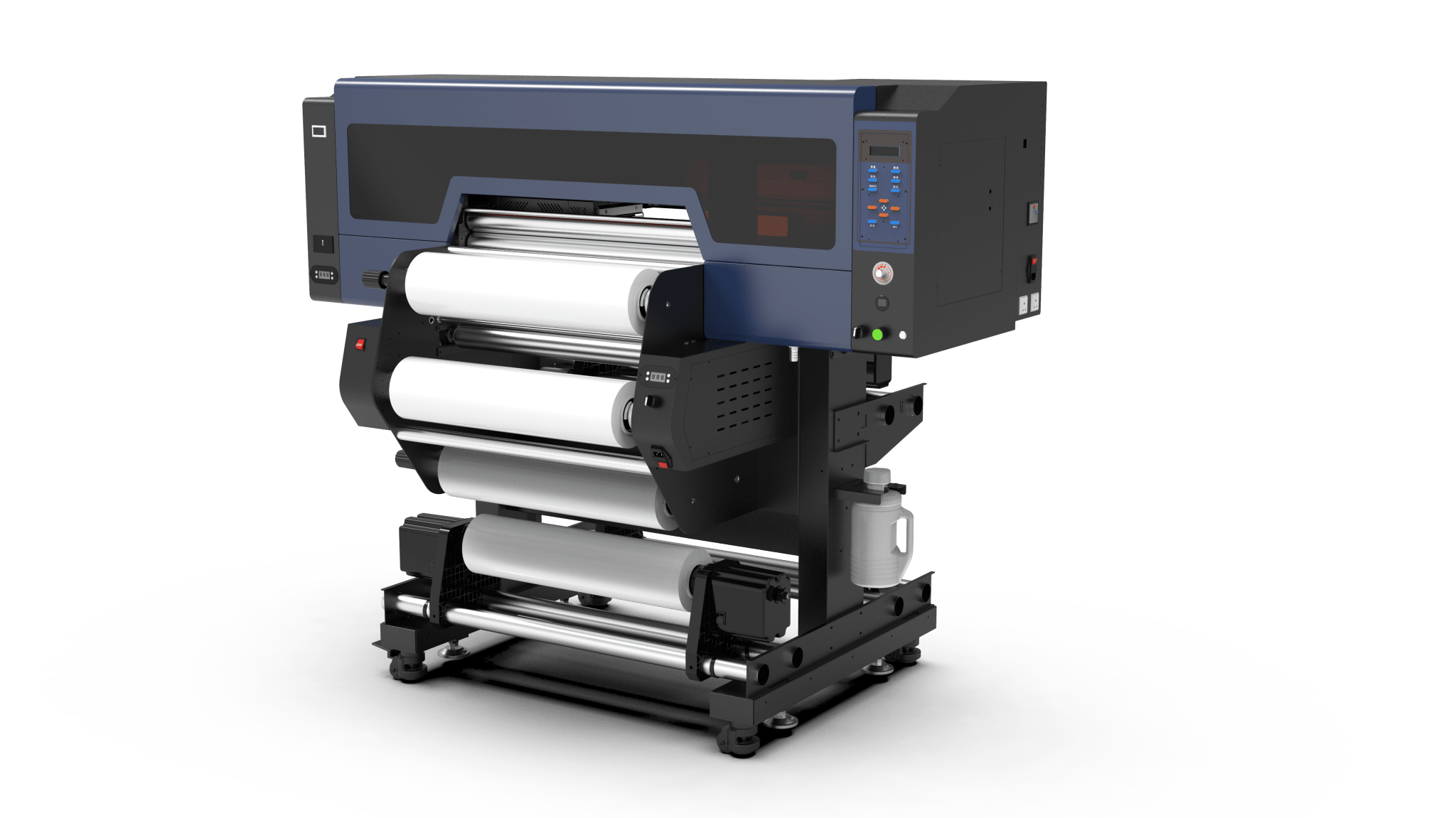

Introducing the SF60-4, an advanced Foil Stamping UV DTF printer designed to deliver high-quality prints with outstanding efficiency. Equipped with four imported Epson I3200-U1 printheads, this machine ensures smooth ink jets and sharp, detailed prints. The SF60-4 is the ideal solution for professional printers who demand flexibility, precision and reliability.

Key features:

• Advanced Printheads : With four Epson I3200-U1 printheads, you get smooth and reliable ink jetting that delivers stunning results with high precision.
• Low-Noise Linear Rail : The innovative linear rail ensures stable and noise-free operation, which in turn extends the machine's lifespan and ensures a more comfortable working experience.
• Versatile Printing Solutions : The SF60-4 supports a variety of specialty processes such as white ink, varnish, gold and silver foil stamping, as well as laser processes, making the machine perfect for creative and complex printing tasks.
• White Ink Circulation System : This system ensures continuous circulation of white ink, preventing blockages and ensuring consistent, high-quality prints.
• Temperature Control for Print Quality : The heating function in the print head base plate maintains optimal print performance, even in low temperature environments.
• LED UV Curing System : The independent water-cooled UV LED curing unit provides fast curing, longer life and higher productivity, perfectly suited for fast printing.
• Fully Automatic Printing and Lamination : The integrated solution for automatic printing and laminating provides high efficiency and ease of use, reducing the need for manual handling.

Specifications :

• Model : SF60-4
• Printhead Type : Epson I3200-U1
• Print speed :
  • 6Pass: 6.5 m²/h
  • 8Pass: 4.7 m²/h
• Ink type : UV DTF ink
• Colors : G+W+CMYK+V/V1
• Heating mode : Rubber roller heating
• System Configuration : CPU: Intel Core(TM) i7-9700K RAM: Kingston 8G or higher, Operating System: Win7 or later, Network Card: Gigabit Ethernet
• Print media : AB film, PET film
• Media transport : Automatic roll winding and unwinding
• Working environment : Temperature: 18°C-34°C, Humidity: 36% - 60%
• Machine size : 1745 x 1100 x 1500 mm
• Printing width : 600 mm
• Rip Software : Maintop, Riin, FleiPRINT, etc.
• Image formats : JPG, TIF, PDF, etc.
• Power supply : 110V/220V 50-60Hz
• Weight : 262 kg

Offering the perfect combination of quality, speed and versatility, the SF60-4 Foil Stamping UV DTF Printer is the ultimate solution for print shops looking to deliver premium prints efficiently and reliably.

For more information or to order, please contact us by email: post@kreatek.no or Tel.: +4798697706

Shipping is calculated manually outside of this page.
